ABS tree nail tag With Black Color
- Brand
- IdcardTech
- Categories
- RFID Nail Tag
- Size
- 40x10mm tail:12mm
- Material
- ABS
- Chip
- Alien H3 or Impinj M5
- Protocol
- ISO 18000-6C(EPC gen2)
Description

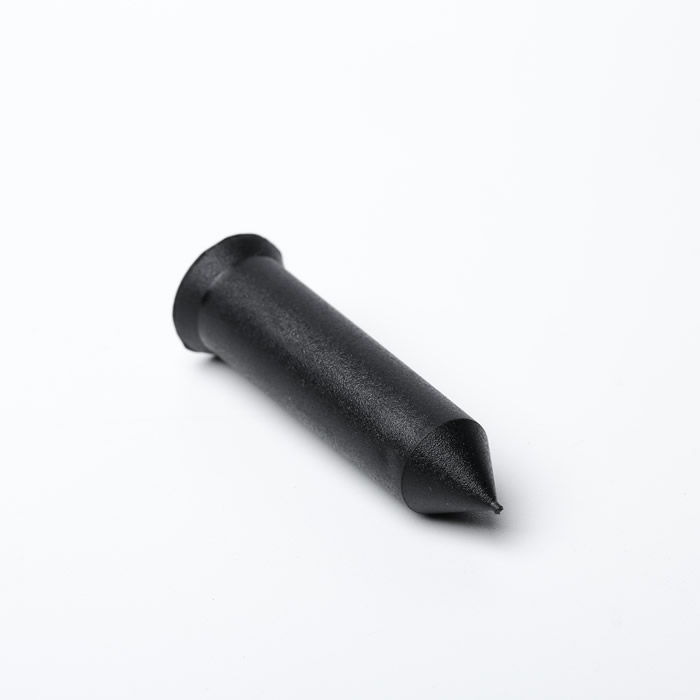

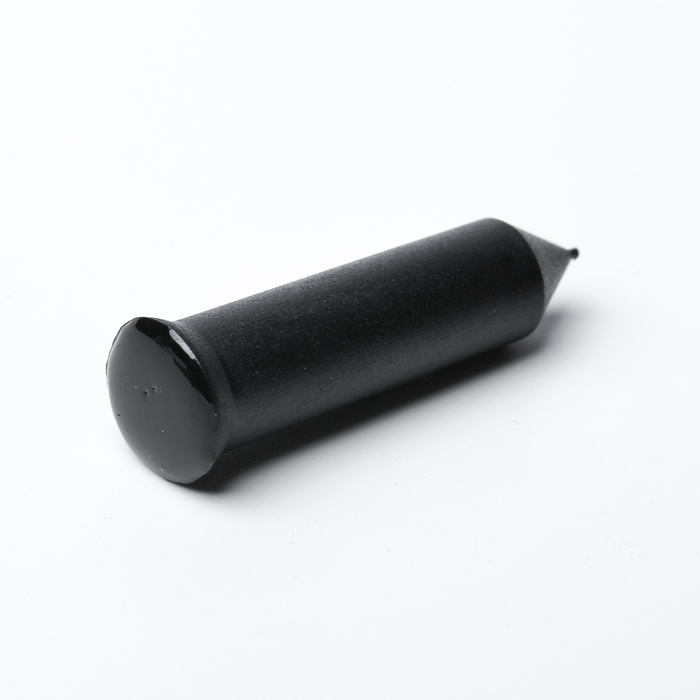

RFID Nail tag is composed of ABS outer covering and robust RFID transponder inside. It is rust-resistant in wet and chemical environment. Only by a narrow space, nail tag could be widely applied in supply chain management, property trackingmanagement, timber and wooden products tracking management, ash bin management, and industrial parts management.
Nail Tag devices are also used in forestry and research applications to tag living trees. Moisture resistance and stable performance across fluctuating temperatures ensure long-term performance.
The nail tag is completely water/dust proof. It is available in 125 kHz, 13.56 MHz, and UHF 860-960 MHz.
|
Performance Specifications |
|
|
Protocol |
ISO 18000-6C(EPC gen2) |
|
Frequency Range |
902MHz-928MHz(US) or 865MHz-868MHZ(EU) |
|
Chip type |
Alien H3 or Impinj M5 |
|
Working mode |
Read and Write |
|
Reading distance |
50cm (related to reader and antenna) |
|
Data Memory time |
50 years |
|
Write times |
100000 times |
|
Anti-collision |
Yes |
|
Physical Specification |
|
|
Dimension |
40x10mm tail:12mm |
|
Base material |
ABS |
|
Installing mode |
Nail into tree |
|
Working Temp |
-40℃~+85℃ |
|
Storage Temp |
-40℃~+100℃ |
|
Weight |
0.35g |
Feature
Fast, secure installation – RFID Nail tags are easily driven into place, and are nearly impossible to remove.
Reliability – high resistance to moisture, thermal fluctuation, vibration, and shock.
Recording– Record all information from sapling to towering trees.
Tracking– Furniture factory can know the wood from which place is the best choice.
