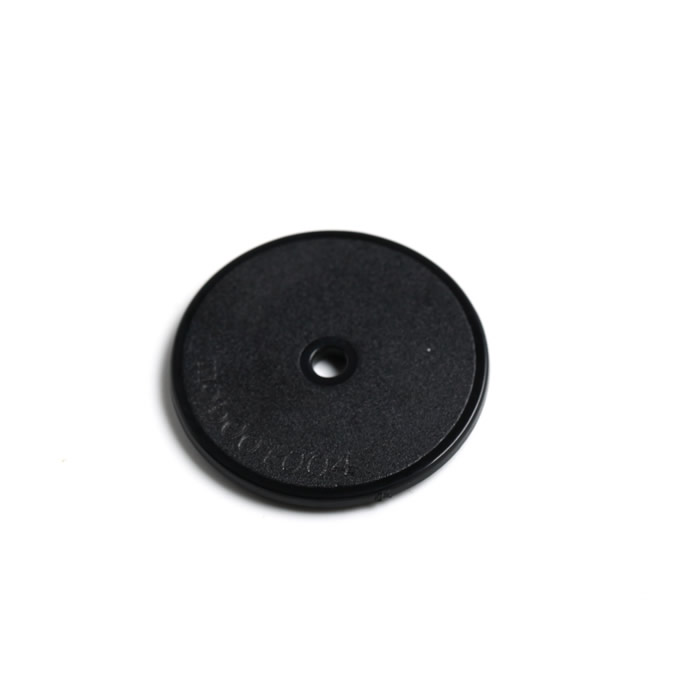

Avaliable Laundry Tag with a hole

Avaliable Laundry Tag with a hole

Brand
IdcardTech
Categories
RFID Laundry Tag
Size
30mm or can be customized
Material
PPS
Color
Black,White or can be customized
Thickness
30 × 3 × 2.3mm
Contact Now
Avaliable Laundry Tag with a hole
Avaliable Laundry Tag with a hole
Avaliable Laundry Tag with a hole

Description

This PPS RFID laundry tag has the characteristics of waterproof, high temperature resistance, non-toxic, anti-corrosion, good insulation and wear resistance. It can be widely used in harsh environments with high temperature, high humidity and high labor intensity. It is designed for RFID laundry and linen management. It can support various operating temperature ranges. PPS RFID laundry tags are offered in different sizes.

Feature

The Laundry Tag contains the NTAG 213, which has a memory capacity of 180 byte (NDEF: 137 byte) and can be encoded up to 100,000 times. This chip comes along with the UID ASCII Mirror Feature, which allows to attach the UID of the chip to the NDEF message. Additionally, the chip contains a NFC counter, which counts the times a NFC tag is read. Both functions are deactivated by default. Further information about this chip and other NFC chip types you can find here. We also provide you with a download of the technical documentation by NXP.



Specification

Here you can find a selection of apps, which are suitable for encoding this product.

Chip: NXP NTAG 213 (NTAG213) – 180 Byte (NDEF: 137 Byte)
Dimensions: 30mm
Color: Custom
Material: PPS
Operating range: 1 – 20 mm (depending on the hardware)
Type: Disc
Chip functions: 7 Byte UID, 24-bit Counter, 32-bit Passwort, ASCII Mirror, Datentransfer 106 kbit/s, ECC based originality signature, Schreibschutz, true anticollision, UID ASCII Mirror, wiederbeschreibar
Chip standards: 13.56 MHz, ISO 14 443-2 A, ISO 14 443-3 A, NFC-Forum Typ 2
Characteristics: Flexible, compatible with all NFC-enabled smartphones, robust waterproof
Shape: Round



Application

These are a few examples for possible applications of the Laundry Tag.
Make an inventory of clothes in hotels, hospitals, etc.
 Enhance garment classification
A detailed overview about all possible NFC applications you can find here.
