Description

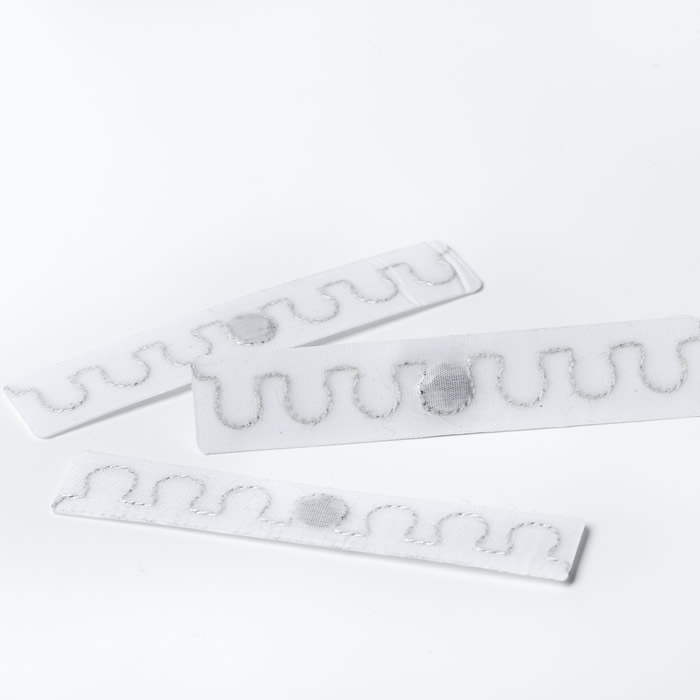

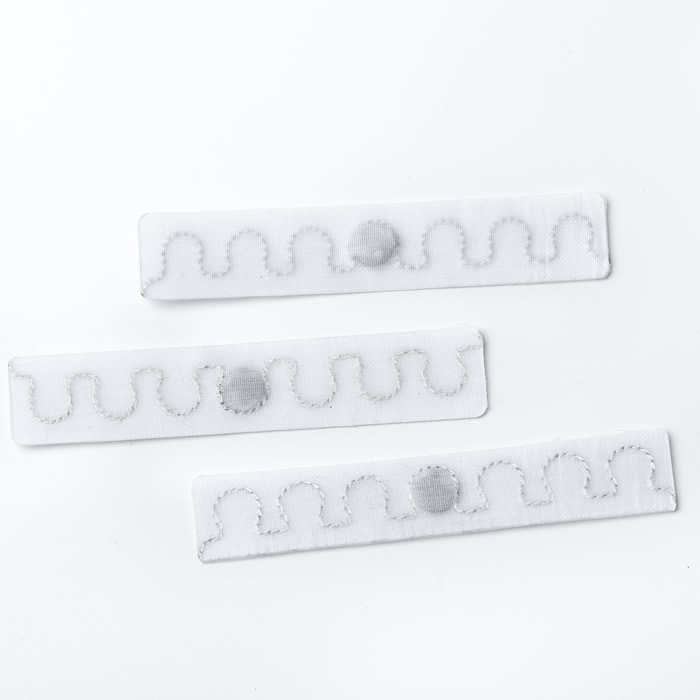

Fabric laundry tag is encapsulated by nylon fabric and built-in RFID chip, suitable for high temperature, high humidity, high pressure environment. Can be washed and soaked, repeated rubbing, directly ironing, sewing. It is a very thin and durable washable laundry tag which widely used in garment factory, laundry, medical logistics laundry, chemical raw materials and the need of high temperature and wear resistance, corrosion resistance and other harsh environment.


Specification

Dimension : 70*15mm (second generation)

Material: 50% cotton, 50% polyester

Inner Chip: NXP U CODE 8

Memory:  128 bits EPC, 32 bits user memory

Working Frequency : 860-960 MHz

Reading Distance: Fixed:70*15mm: 7m (22 feet)

                                      Handheld: 70*15mm: 5m (16 feet)

The final read range depends on RFID Reading equipment and application environment.

Operating Temperature: -40~ 85℃ (-40~185℉)

Storage Temperature: -40~120℃ (-40~248℉), 50% RH

Tag lifetime: First of 200 wash cycles or 3 years from ship date.

Feature

Optional dimensions for different needs

Surpassed reading performance

Good chemical and corrosion resistance

Outstanding mechanical resistance

Application

Automate operational process during laundry

Improve the accuracy of information between  the laundry and its customers

Hospital uniforms & Hotel sheets tracking
