Specification

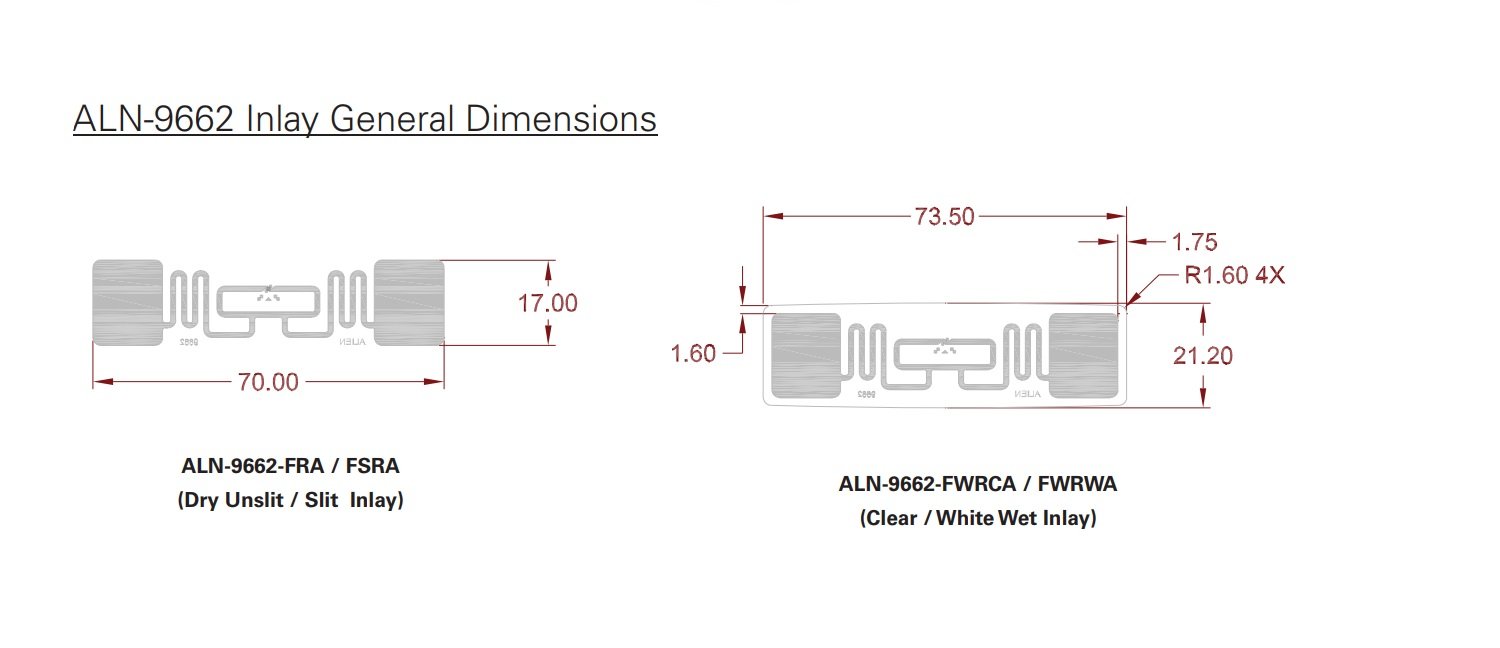

size: 73x21mm

Antenna size: 70x17mm

Antenna material: Aluminum

Antenna thickness: 0.01mm

Substrate thickness: 0.03mm

Induction frequency: 840 ~ 960MHz

Conform to: iso18000-6c standard

Working frequency: 915MHz;

Resonant frequency: 915MHz + / - 13mhz

Storage capacity: 0 bits / 96 bits / 512 bits / 2048 bits

Erasable times: 10000 times (HSL 100000 times);

Data storage time: 10 years;

Communication rate: 640 kbits / S (HSL 40kbit / s);

The ideal storage environment is + 15 ℃ ~ + 25 ℃, 20% RH ~ 45% RH

Tolerance storage environment: - 25 ℃ ~ + 50 ℃, 20% RH ~ 90% RH

Tolerant working environment: - 25 ℃ ~ + 65 ℃, 20% RH ~ 90% RH

Withstand voltage capacity: ≤ 5N / m2

Bending capacity: ≥ φ 20mm

Packing: roll / sheet / whole sheet

Chip options: NXP XM / XL / HSL; alien-h2 / H3; impinj-m2 / m3, etc

Main application fields: Logistics / supply chain / goods tracking / warehouse goods management / power inspection / vehicle identification / home school communication / personnel attendance / etc.

Recognition distance: 5-15m (tag antenna size is related to reader antenna size and application environment)
