dry inlay UHF
- Brand
- IdcardTech
- Categories
- NFC Label
- Material
- PET
- Chip
- lmpinj(M4、M4E、MR6、M5),Alien(H3、H4)
- Thickness
- 0.07mm
Specification

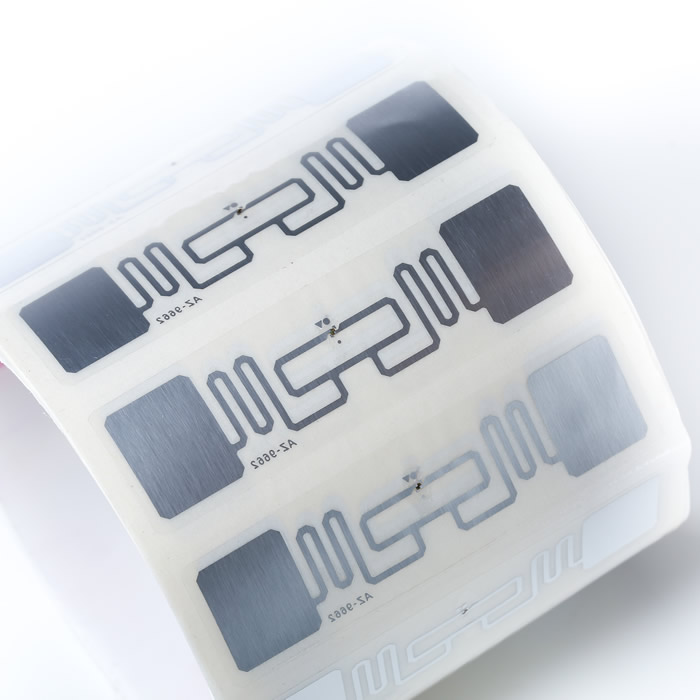

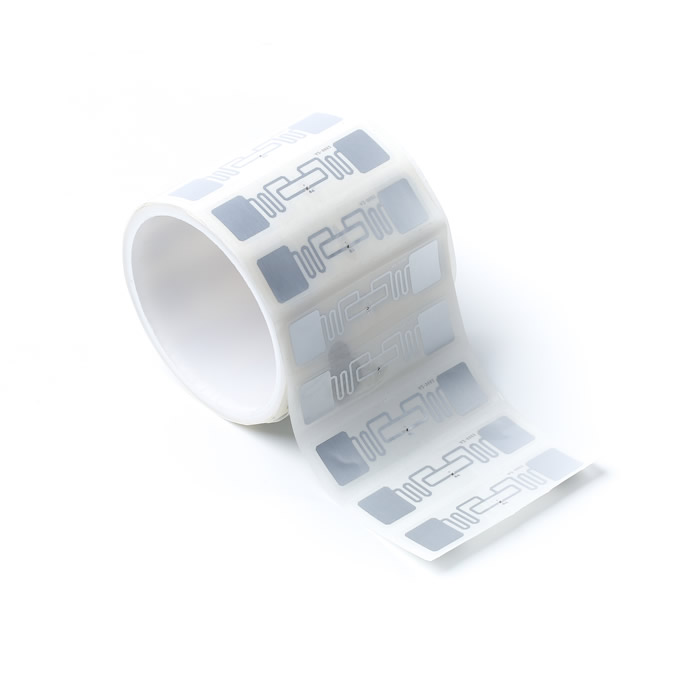

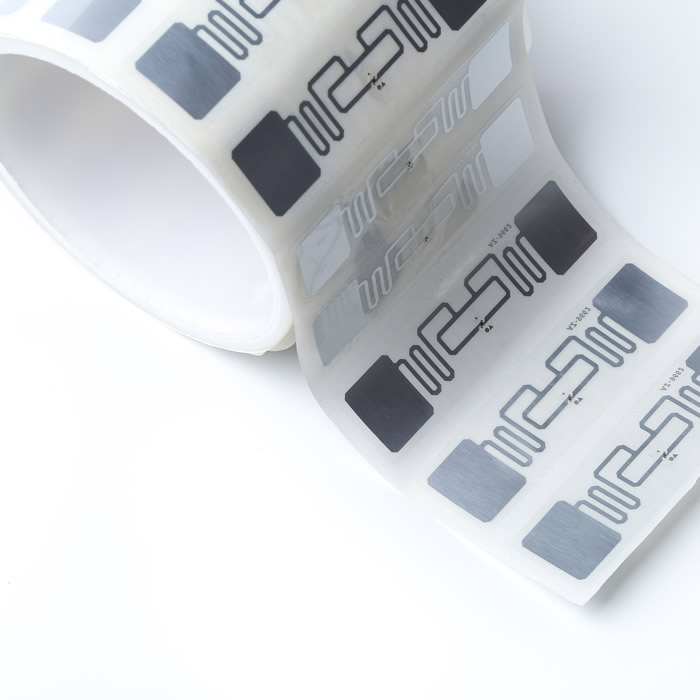

UHF frequency dry Inlay is made of aluminum etched antenna and 860-960MHz chip. Ane without glue and the whole thickness is 0.07mm±0.005mm. UHF dry Inlay is capable of reading multiple tags at one time, strong penetrability, can be read and written.
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 860-960MHz |
| Antenna size： | Customized |
| Protocol： | ISO18000-6C |
| Surface material： | PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | Aluminum etching antenna+chip |
| Reading distance： | 0.2-8M |
| Chip： | lmpinj(M4、M4E、MR6、M5),Alien(H3、H4) |
| Process individuation： | Chip internal code，Write data. |
| Packaging： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
Application
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
