Performance Specifications

Protocol

ISO 18000-6C(EPC gen2)

Frequency Range

902MHz-928MHz  or 865MHz-868MHZ

Chip type

NXP UCODE7 or UCODE8

Chip Memory

EPC 128bits, User 32bits

Working mode

Read and Write

Reading distance

6m-9m (related to reader and antenna)

Data Memory time

50 years

Write times

100000 times

Anti-collision

Yes

Physical Specification

Dimension

100mm ×26mm× 9mm

Installing hole size

The Installing hole diameter for product fixing is 4mm, the centering distance of the Installing hole is 143mm

Base material

ABS/polymer material

Installing mode

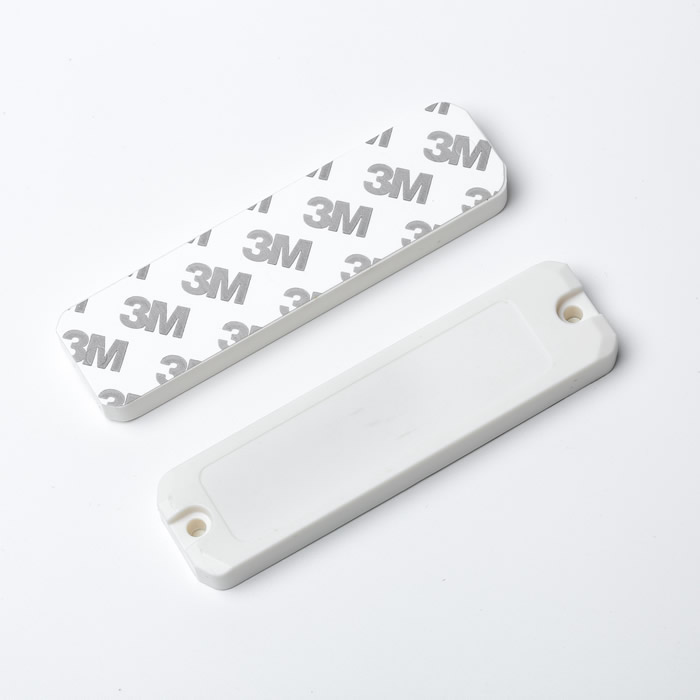

Magnets, screws, aluminum rivets, super glue, double-sided adhesive; (not standard, optional

purchase)

Working Temp

－25℃~＋70℃

Storage Temp

－40℃~＋70℃

Weight

23g
