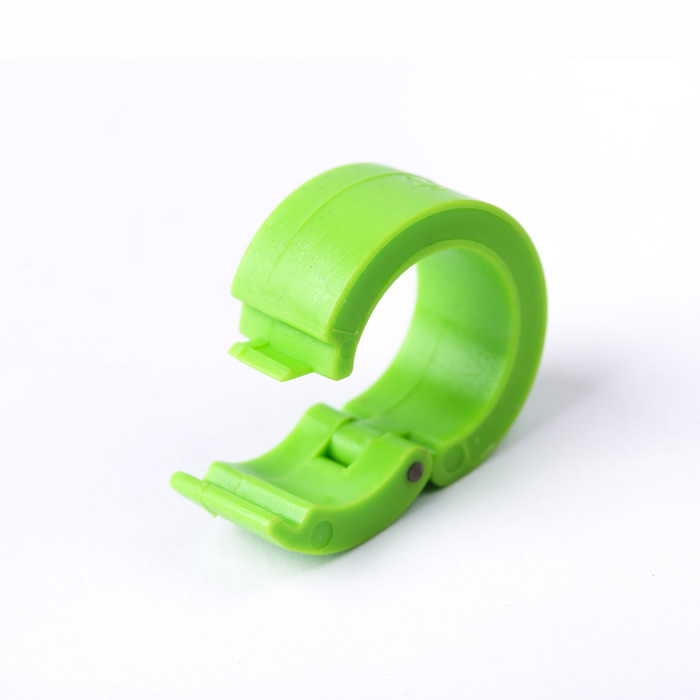

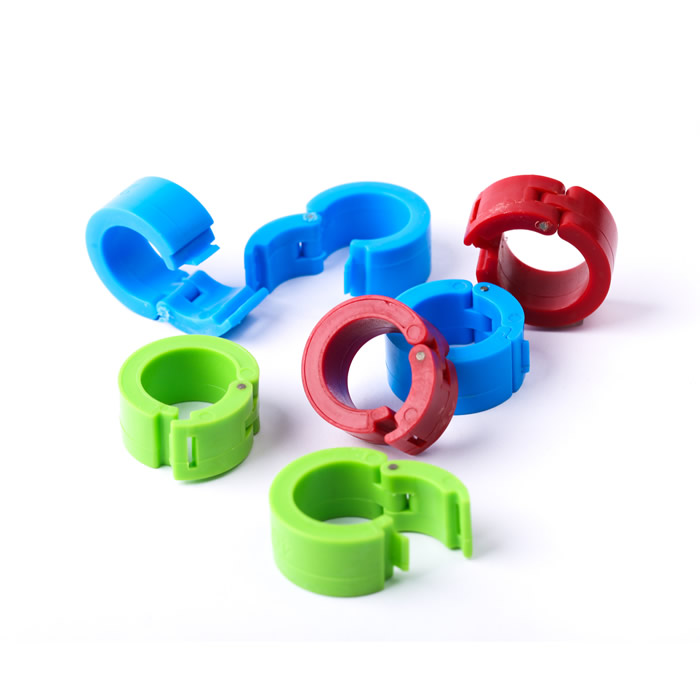

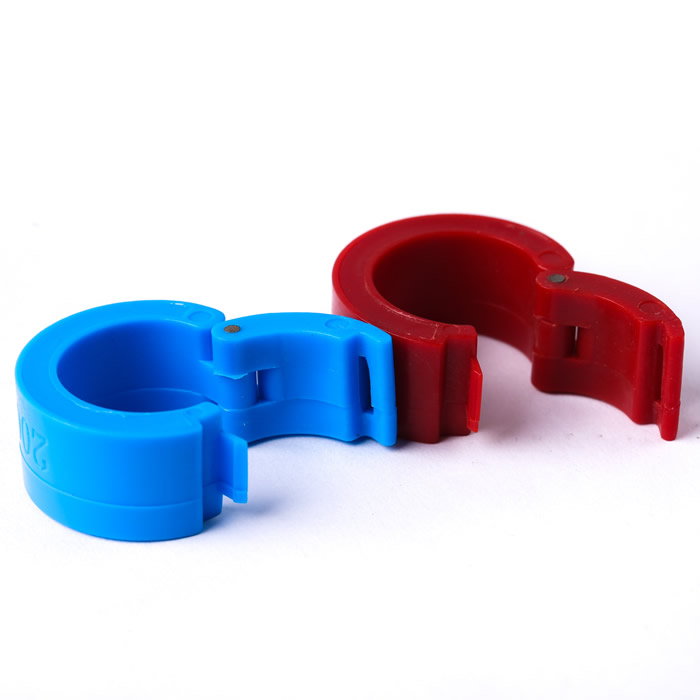

High Quality Passive Ring Tag For Pigeon
- Brand
- IdcardTech
- Categories
- Animal Tag
- Size
- Outer diameter 30mm,Inner diameter 20mm
- Material
- ABS
- Color
- Blue,Red,Green,Black,White or can be customized
- Thickness
- 5mm
Specification
This RFID animal foot ring is suitable for use in fowl breeding and tracing, as well as poultry racing. With a seal chip inside the tag to store of the data, the pigeon RFID tag can be scanned by RFID Reader within the read range from 3 cm to 30 cm. Thus, it avoids human error and provides a perfect solution in pigeon tracking and chicken tracking.
| Material | ABS |
| Dimension | 20mm/30mm |
| Operation Frequency | LF(125KHz / 134.2KHz) or HF (13.56MHz) |
| Color | Green or customized |
| RF Protocol | ISO 14443A, EPC/ISO18000‐6C |
| Reading Distance | Up to 5~30cm (Depends on reader and IC type) |
| Chip Available |
EM4200, EM4100, EM4102, EM4305, EM4001, T5577,Hitag1, Hitag2, Hitag S, Hitag-u Advanced, TK4100, GK4100, others upon request |
|
I-CODE (ISO 15693-3), Mifare 1K Classic (Mifare 1K S50), Mifare 1K EV1, Mifare 4K S70, Mifare 4K EV1, Mifare S20, Mifare Ultralight, Mifare Ultralight EV1, Ultralight C, Mifare DesFire 2K |
|
| Operating Temperature | -40º C to+80º C |
| Storage Temperature | -40º C to +100º C |
| Writing Cycle | 100,000 times |
| Packing | 200pcs/bag, 10bags/ctn |
|
Application |
Logistics tracking management |
| Food and animal tracing | |
| Warehouse management | |
| Cash bags | |
| Animal husbandry | |
| Laboratory | |
| Pet hospital | |
| Case tagging |
